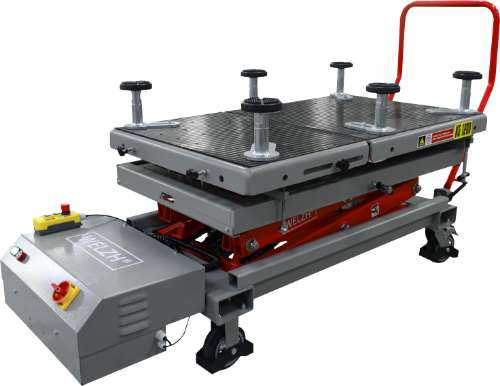

EV Battery Lifting Table
EV Battery Lifting Table
Art. 5519-WW
EAN: 5056297541073
Versatile Application
Specifically designed for efficient and safe handling of electric vehicle batteries in workshops and service centers.
With a height working range from 650mm to 1840mm, it accommodates a variety of tasks and applications.
Robust Safety Measures
Equipped with essential safety devices and has undergone thorough safety and quality control tests to ensure the well-being of operators.
A built-in stabilization system with leveler screws provides added stability when the platform is used as a stationary work surface.
Efficient Operation
With a load capacity of 1200kg and a distributed load design, the lifting table is well-suited for handling heavy vehicle components.
The user-friendly push-button control system, smooth lifting action, and easy maneuverability make the lifting table simple to operate, reducing operator fatigue and enhancing overall productivity.
Specifications
Load Capacity:
Maximum Load: 1200kg (2645 lbs)
Lifting Height:
Minimum Height: 650mm (25.6 in)
Maximum Height: 1840mm (72.4 in)
Platform Dimensions:
Length: 1300mm (51.2 in)
Width: 768mm (30.2 in)
Lifting & Lowering Time (Unloaded):
Lifting Time: Approx. 46 seconds
Lowering Time: Approx. 105 seconds
Power Supply:
Voltage: 220V/50Hz, single-phase
Click Here to Watch our Video
